I posted some highres Disciple photo's on WoS.
Click here for the topic.

This week I did some work on a Disciple disk interface which I got from Ruud Baltissen on the last retro computer fair in Maarssen.

It caused a ZX Spectrum not to boot, with garbage on screen etc.

I immediately suspected a PAL chip to be the problem.

I know from the past these died quickly in a Disciple interface, and being very expensive: MGT enabled security on the PAL chips so it was not possible to read the contents and clone them back then.
Fortunately someone once received a repaired Disciple interface with PAL chips that did not have that security, and he was able to read the contents and publish it on the net.

There is no legal limit anymore because MGT does not exist anymore, so I can happily download the PAL files.

I do not have PAL chips in stock; they're obsolete and should be replaced with GAL chips.
But the files I downloaded were not compatible with the GAL chips.
I needed to translate them.

For this, Lattice, the creators and manufacturer of PAL and GAL chips, publiced a GAL to PAL translator.
This command line utility will convert a PAL jedec file to a GAL jedec file.

I downloaded the utility, converted the PAL20L8 files, and tried to program a GAL20V8 chip with the new files.
Then I replaced the PAL chips on the Disciple, and it works!!!

So the Disciple boots again, and everything seemed fine, except for the 7805 voltage regulator on the Disciple, which is overheating.

I replaced the 7805, but it still get's to hot, possibly causing instability.
I am currently adding new cooling paste, and replacing the cpacitor at the 7805.
Hope that will solve all problems.

-Update-

I suspected the inhibit and nmi buttons to have problems due to aging, so I measured the resistance: I found values of about 30 ohms.
I desoldered the switches, and measured again: no problems with high impedances.
So the conclusion is: the soldering contacts are bad.

I resoldered all important contacts on the Disciple board: all chips and more.
Now all problems seem to have gone.
So 20 - 25 years of aging of these Disciple interfaces seem to give result in bad soldering contacts! Just to let you know!

I added a new page in my website: the Sales page.

From there you can easily check out my currently offered eBay items, and lot's of other rare stuff I am not (or not yet) offering in eBay, but which is available by direct order only.

So check it out (click)!

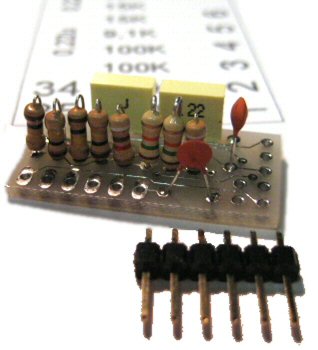

I created a document with video fixes and improvements and video cables for all ZX Spectrum 128K models.

Click here for the document.

Keep an eye on my eBay channel: http://www.ebay.co.uk/sch/quantit/m.html

I am offering lot's of rare sets the coming weeks.

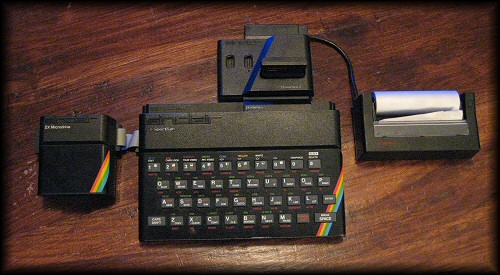

On right now: a very complete boxed ZX81 set!
